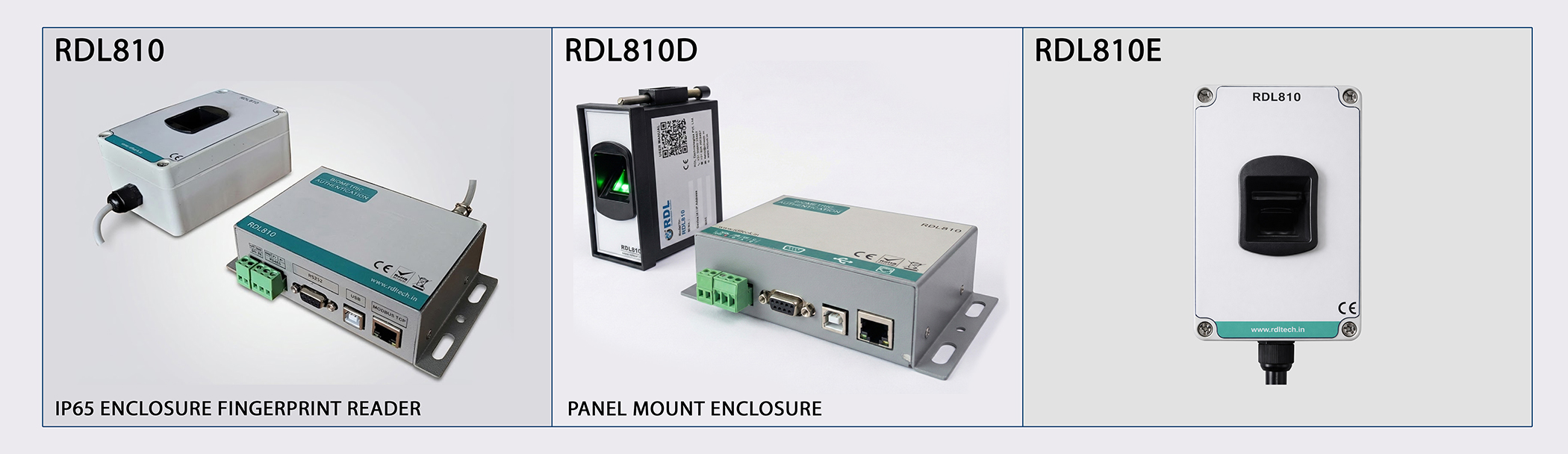

Biometric authentication system interface

Biometric Authentication System

Biometric Authentication System is designed to enhance the security and access control of PLC (Programmable Logic Controller) and HMI (Human Machine Interface) systems. By integrating biometric authentication technologies, we provide a robust and reliable solution that ensures only authorized personnel can access critical industrial control systems.

The product is tested with all PLC’S and supports multiple interface options.

Features

  • Biometric authentication methods such as fingerprint scanning, facial recognition, or iris scanning.
  • Integration with existing PLC and HMI systems for seamless implementation.
  • Secure storage and encryption of biometric data.
  • User management and access control functionalities.
  • Real-time monitoring and logging of access events.
  • Multi-factor authentication options for enhanced security.
  • Centralized administration and reporting capabilities.
  • Finger print enrollment : Max 1,000 Users.
  • Memory : 16 GB.
  • Communication : RS485 MODBUS RTU, MODBUS TCP, RS232, USB.
  • Power supply : DC 24V.

Benefits

  • Higher level of security and access control for critical industrial control systems.
  • Prevention of unauthorized access and potential threats to PLC and HMI systems.
  • Reduction in the risk of data breaches and sabotage.
  • Compliance with industry regulations and standards.
  • Elimination of password-related security vulnerabilities.
  • Centralized administration for easy user management and reporting purposes

Applications

  • Manufacturing facilities with automated production lines.
  • Energy and utility organizations with power generation & distribution systems.
  • Water and wastewater treatment plants.
  • Transportation and logistics companies with control and monitoring systems.
  • Oil and gas refineries and petrochemical plants.

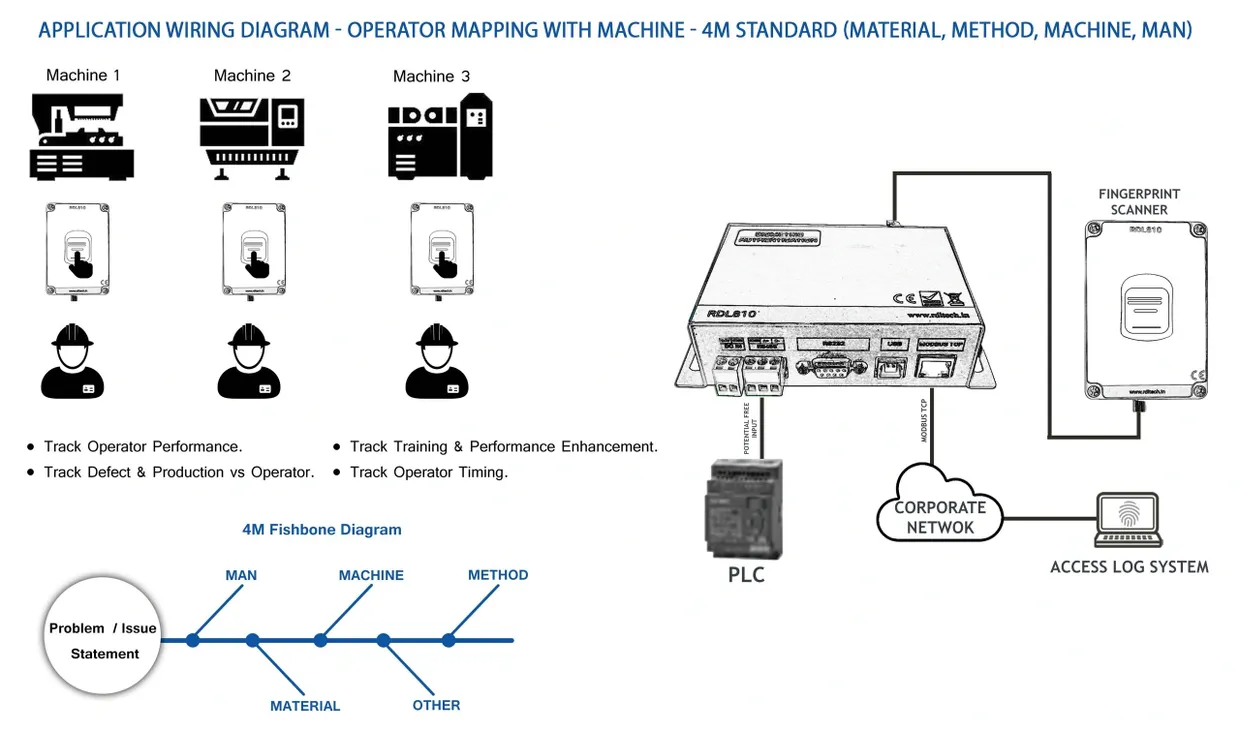

  • 4M (Man, Machine, Material, Method) standard implementation.

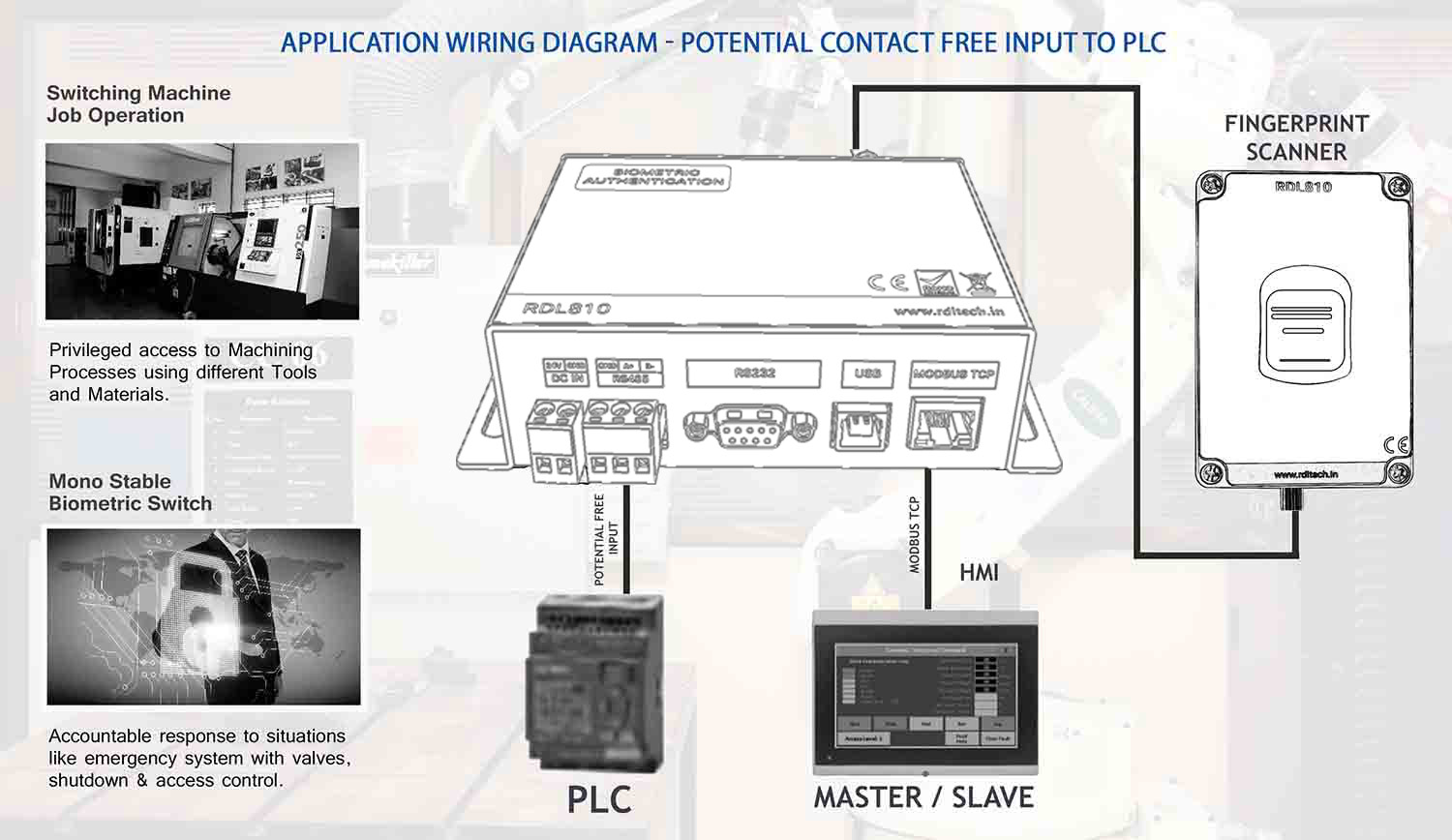

Fingerprint access control device
Face recognition authentication system

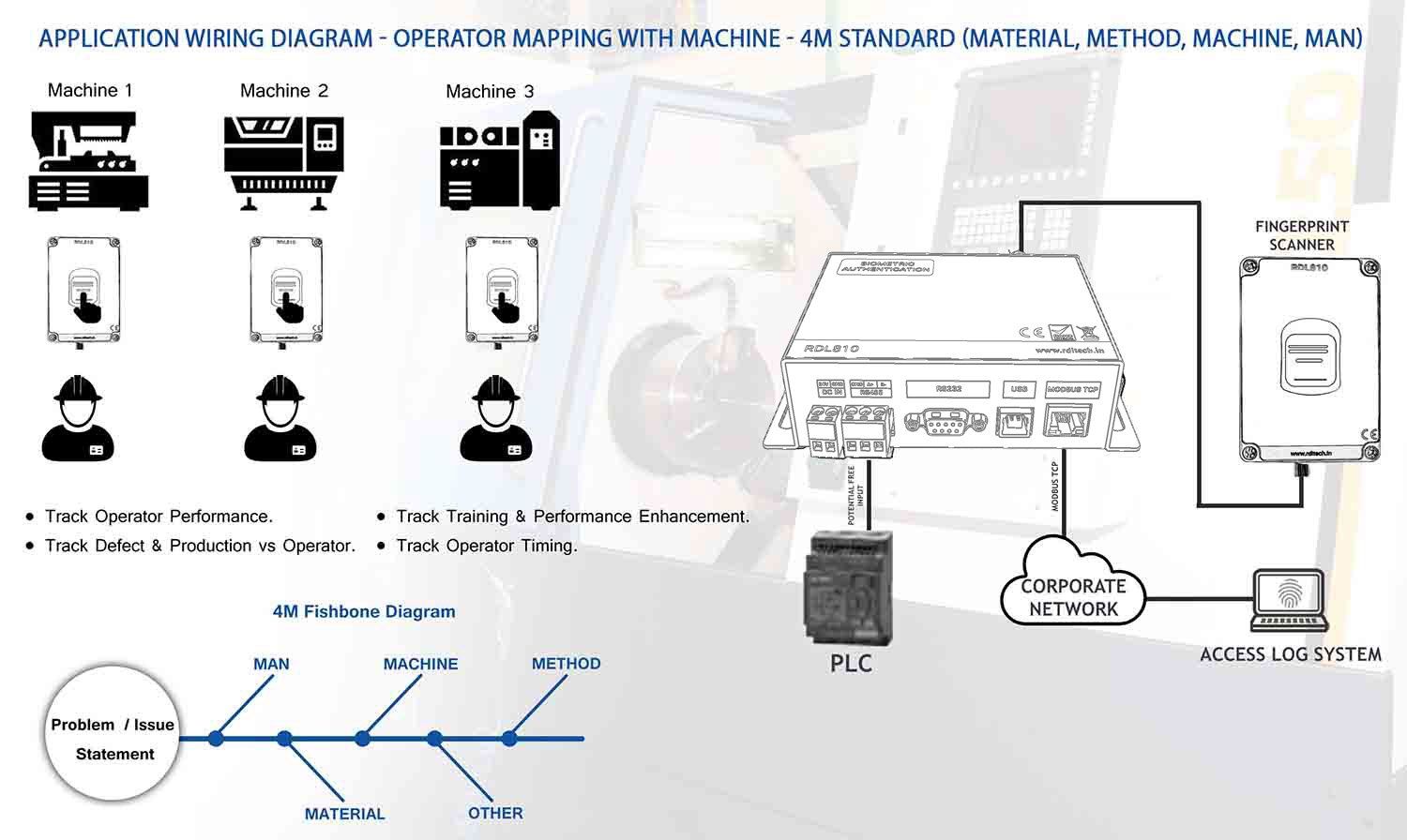

Secure biometric login screen
Employee attendance biometric scanner
