EMS - Online Live ESD Monitoring System

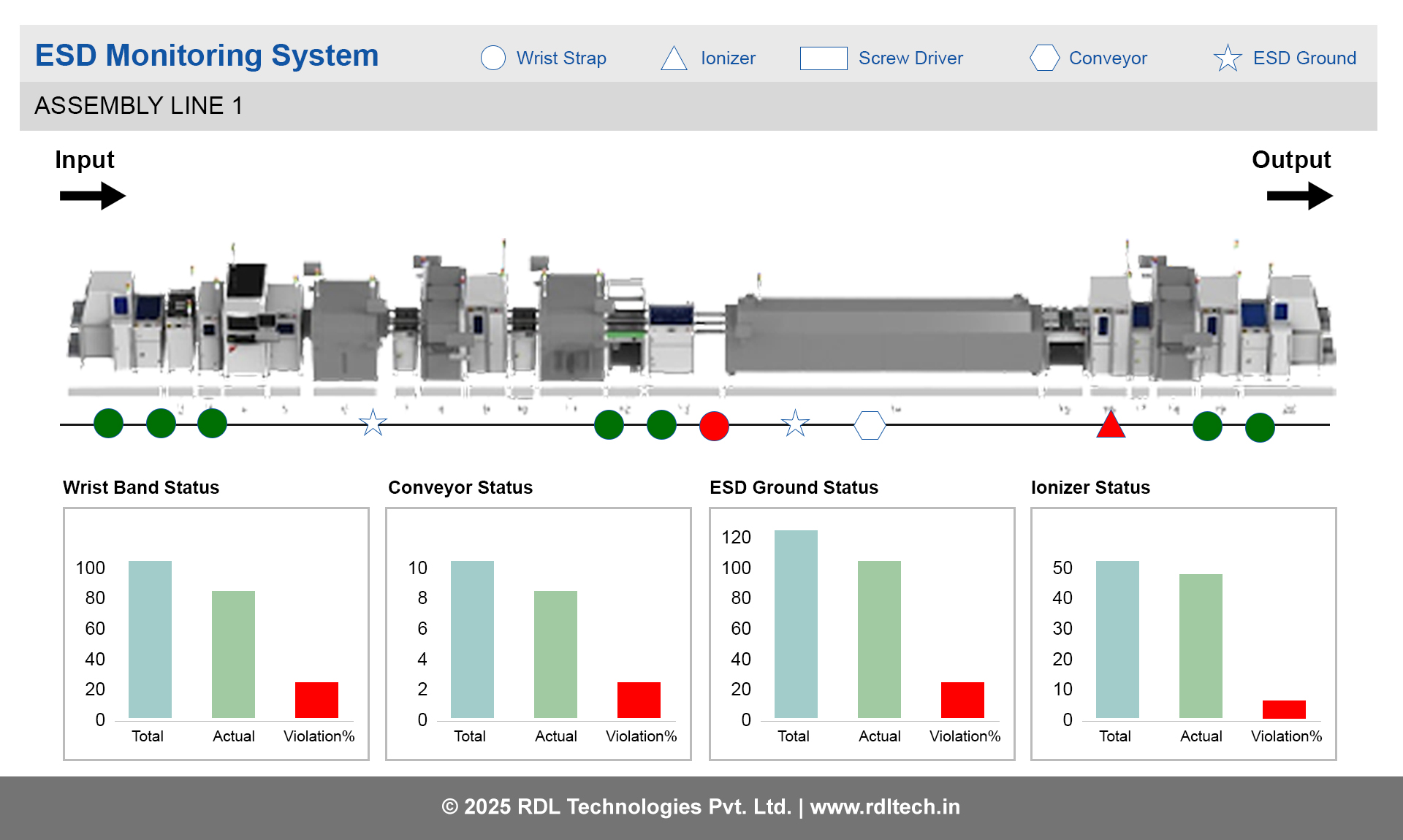

Online Live ESD Monitoring System, a good tool to measure the effectiveness of an ESD compliance and its efficacy in improving yield, provides 100% monitoring for both the operator and the work surface. This unit provides continuous monitoring of user wearing a wrist strap and also functions to ensure the grounding integrity of ESD protected work surfaces. This device will continuously monitor the user until the wrist strap or work surface becomes dysfunctional or unsafe according to accepted industry standards (S20.20-2014/IEC 61340-5-1), at which point the monitor will issue an audible signal notifying the user of a problem. The ESD Online Continuous Monitoring System also verifies whether an outlet ground is good or bad.

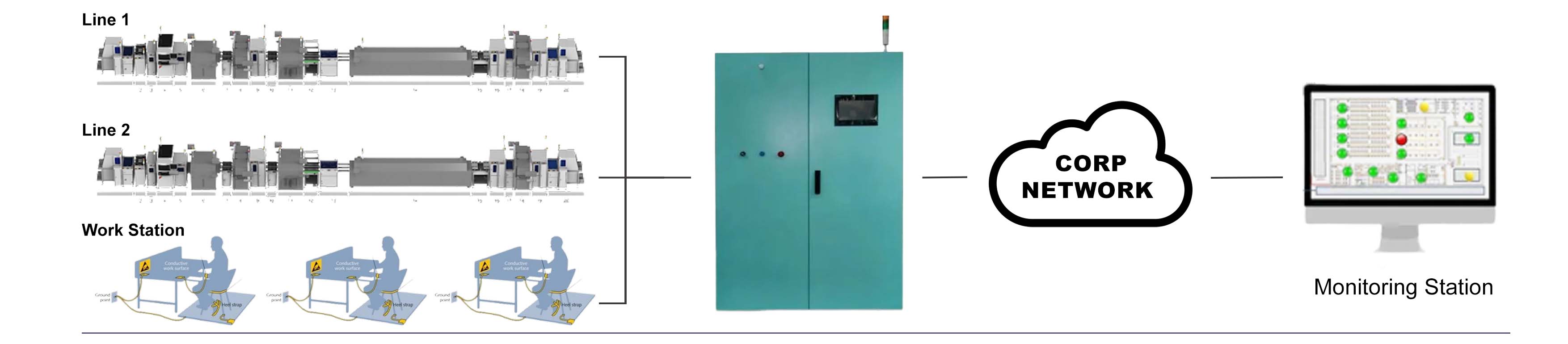

Remote monitoring of assets using ESDIntelli Track

Features

Alerting with Fault Location.
Accurate Earth resistance measurement.
Bonding & Grounding Connectivity status.
Electrical grounding history with fault Prediction.
When outage of Primary ground connection it automatically select Alternate Ground Source.
Grounding System Maintenance Alert.

Supporting for wide range of communication protocol - MODBUS TCP / RTU, JSON, MQTT, FTP.

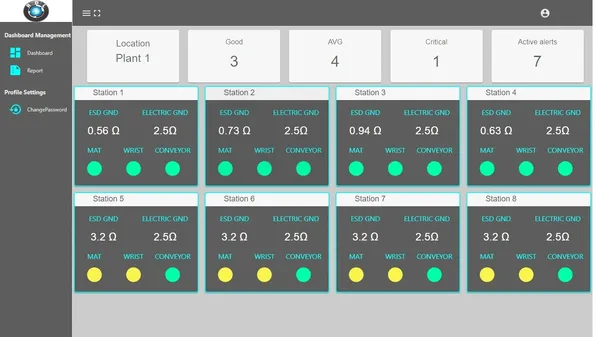

Real Time status available on Network.
Visual and audio signals for the failure.
Modular Design and extendibility.
Ease to configure and maintain of the complete setup.
Centralized Data storage on SQL server.

Why Live ESD Monitoring System is Required?

Equipment, furniture, clothing and other common items in today’s workplace can store thousands of volts in electrostatic charge But only 25 electrostatic volts are required to permanently harm an integrated circuit (IC's). The expenses can be devastating when SMT businesses fail to take into account the risk because they are unable to see them.

In the article, The “Real” Cost of ESD Damage it is noted that ESD losses are between half a billion to five billion dollars every year! While businesses continue to overlook these technical issues in order to cut spending, the problem continues to worsen. It is possible that if the topic were better understood, the risks would not be overlooked every year during the budget review.

Real-time location tracking of equipment

ESD & Semi Conductor Devices

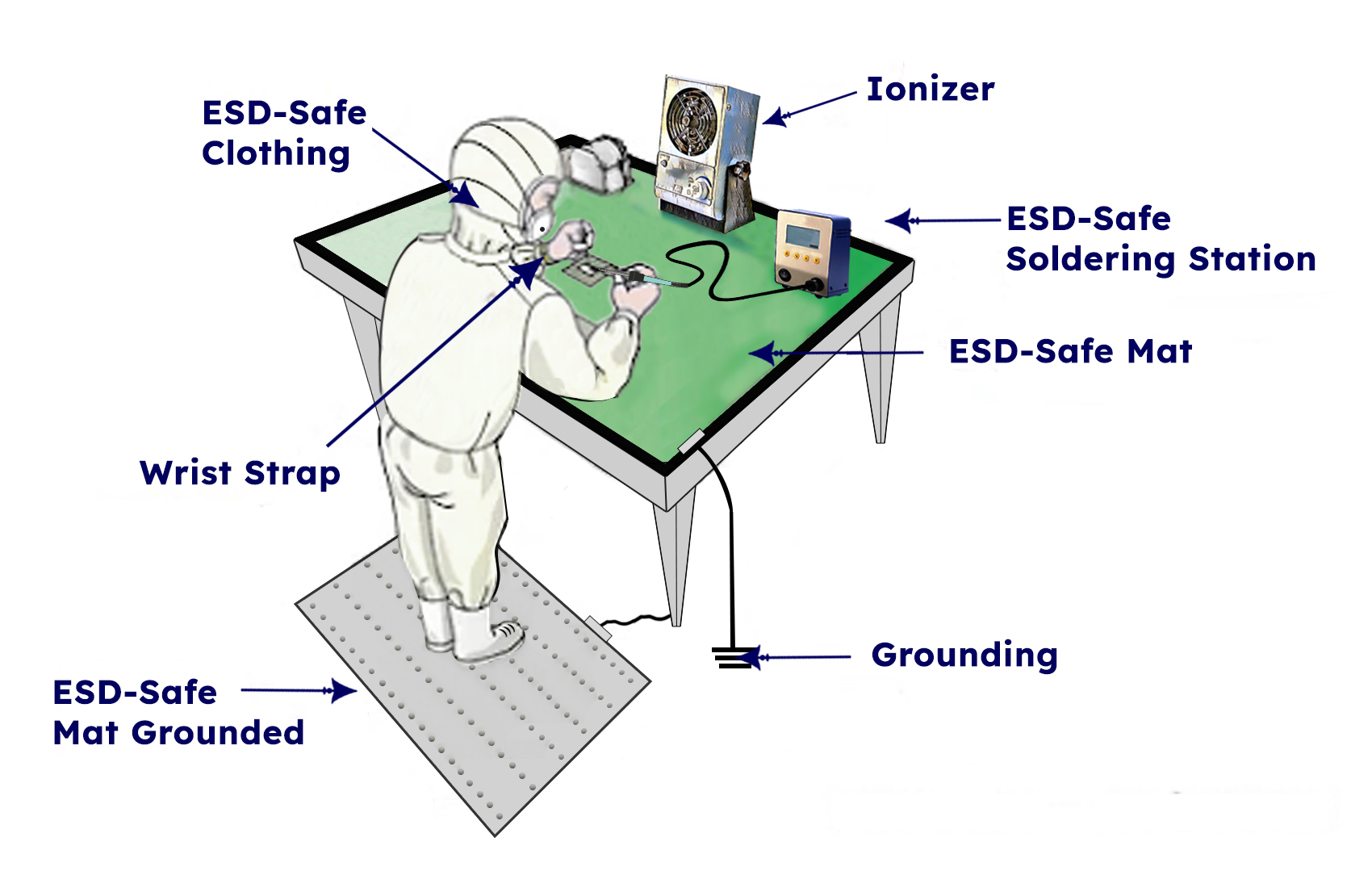

ESD or Electrostatic Discharge is a sudden surge of electricity between two electrically charged objects. Contact, an electrical short or dielectric breakdown is the typical cause. During these natural occurrences, electrical currents can travel to the ground.
A current can travel between the PN junctions on integrated circuits to reach ground.
This current flow will burn holes visible to the naked eye in an integrated circuit, with evidence of heat damage to the surrounding area.
It is repeated discharge events that will degrade internal equipment components over time. While there is not a way to completely prevent these occurrences there are ways to reduce the risk of damage.

Personnel tracking for industrial safety

ANSI/ESD S20.20 Control Program

The ANSI/ESD S20.20 has become the industry standard in every high-tech industry, from telecommunications and aerospace to automotive and electronics. Any business can use it to ensure that working environments are protected from charges of 100v or more.

Implementing an ESD control program is vital for businesses that need to reduce or eliminate component failures and increase the quality of their products.

An ESD program offers the following benefits:

Increases ESD awareness throughout the organization.
Improves the standard to which all processes are held.
Saves money.
Reduces failures and necessary.
Ensures you’re working at the same standard as others in your industry.
Offers proof to potential clients of your quality.
Increases your marketability.

Automated alerts for asset movement

Ensure Safety, Enforce Compliance, Empower Workforce.

Introducing an intelligent AI-powered PPE monitoring solution that helps industries enforce personal protective equipment (PPE) compliance in real time - reducing risk, enhancing safety, and achieving regulatory compliance effortlessly.
