Cloud PLC 4.0

The Programmable Cloud PLC® offers Unmatched adaptability, reliable connectivity and customizable solution for your industry. Cloud PLC® can be utilized as an edge gateway, Automation tool, data logger & edge processing node. Cloud PLC supporting wide range of industrial protocols like Modbus, MQTT, JSON, RESTful, TCP/UDP, SNMP, OPC which makes the solution integration easier than ever for IT / Automation engineers.

Features

8x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
2x Analog Output(AO) 0-10v.
2x 0-20mA transmitter.
4x Isolated Digital Input 24v.
4x Isolated Digital Output / PWM 24v.
2x Relay (NO & C).
1x Isolated RS485 for MODBUS RTU Communication.
1x Isolated RS232 communication port.
1x USB-Device Interface for Configuring, Monitoring & Download.
1x WiFi / Bluetooth / BLE Wireless Communication.
Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
Protocol JSON / MQTT, RESTful, TCP/UDP, SNMP & OPC.
Support secure communication SSL.
16 GB inbuilt storage*.
Support most of the cloud platforms including Microsoft Azure & AWS etc.
Real Time Clock - RTC DS3231, Accuracy: : +/- 3.5ppm From -40 to +85 Degree C.
Power Supply - DC 9-36V.

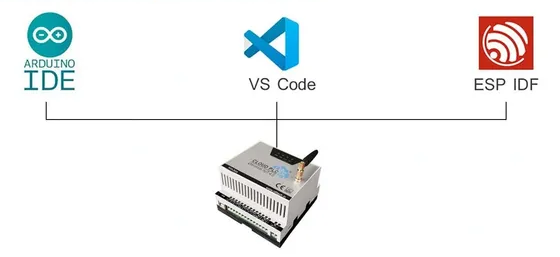

Open Source Development Environment

Cloud PLC® 4.0 can used to build the custom industrial solution for monitoring and controlling PLC and SCADA, HMI, VFD, Motors, servo, Valves, energy meter, actuators, relays, encoder, RFID and fingerprint readers and industrial sensors.

Applications

Production and process monitoring.
Utilities monitoring.
Condition monitoring.
Environment monitoring.
Industrial Smart grid.
Leakage detection.
Generator monitoring.
Cold storage monitoring.
Warning message in case of calamities.
Standard SCADA Applications.
District Metering.
Water Treatment.
Green House.

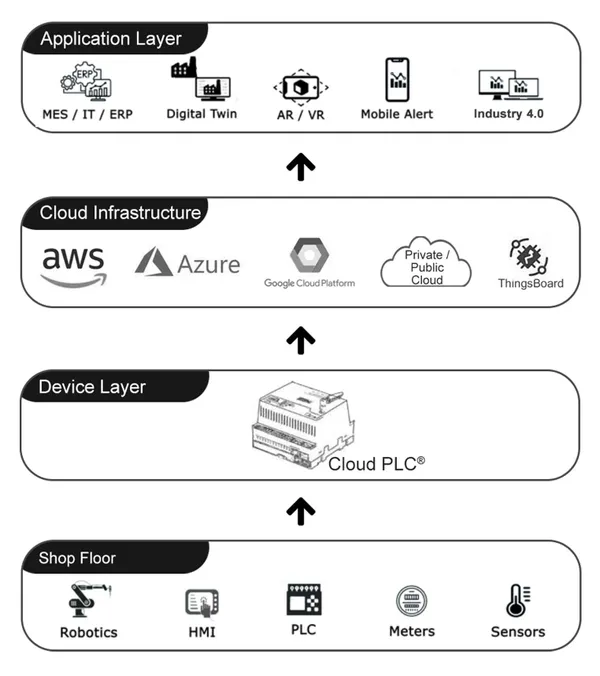

Real-time data monitoring with Cloud PLC

OEM & White label Service

RDL OEM (Original Equipment Manufacturer) that designs and builds a product based on their own specification, and then sells it to another company for branding and distribution. OEM Minimum order quantity 100 to 500 no's.

Predictive maintenance using Cloud PLC analytics

Custom Solution Development

Quick adaptability to any kind of customization requirements be it structural, functional, or Look-and-feel. Seamless transformation made possible for every possible aspects to tailor the standard products to realise your creative imagination.
