ESD Safety Monitoring System for Electronics Manufacturing Industry (EMS)

Electrostatic Discharge (ESD) is one of the major causes of latent and catastrophic failures in electronic manufacturing environments. In high-volume Electronics Manufacturing Services (EMS) facilities, maintaining continuous ESD compliance is critical to ensure product quality, reduce rework, and meet international standards such as ANSI/ESD S20.20 and IEC 61340.

This case study describes the implementation of a real-time ESD Safety Monitoring System in an EMS manufacturing plant producing PCB assemblies, automotive electronics, industrial controllers, and consumer electronic products.

Start with One Machine Request a Demo

Customer Profile

Industry: Electronics Manufacturing Services (EMS)

Products Manufactured

PCB Assemblies.

Automotive Electronic Modules.

Industrial Control Boards.

Consumer Electronics.

IoT Devices.

Production Capacity

1.5 Million PCB Assemblies per Year.

600+ Shop Floor Operators.

8 SMT Lines.

4 Manual Assembly Lines.

Business Challenge

The EMS facility faced several ESD-related challenges

Operational Issues

Manual ESD audits performed once per shift.

No real-time monitoring of wrist straps and grounding.

Difficulty identifying ESD violations.

Frequent operator movement between workstations.

High effort required for compliance reporting.

Existing Process

Operator enters production area.

Manual wrist strap tester used.

Results recorded on paper.

Periodic supervisor inspections.

Monthly compliance reports prepared manually.

Quality Issues

Intermittent PCB failures.

Latent defects discovered during field operation.

Increased warranty claims.

Product reliability concerns.

Compliance Challenges

ANSI/ESD S20.20 compliance requirements.

Customer audit findings.

Lack of digital traceability.

Manual record maintenance.

Limitations

Human dependency.

Paper-based records.

No continuous monitoring.

Delayed corrective actions.

Audit preparation effort.

Proposed Solution

Smart ESD Safety Monitoring System

A centralized IoT-based ESD monitoring platform was deployed to continuously monitor ESD compliance across production areas.

System Components

Smart Wrist Strap Monitor

Monitors:
● Wrist strap continuity
● Operator grounding status
● Connection integrit

ESD Footwear Monitoring

Monitors:
● Heel grounders
● Conductive footwear resistance
● Ground path continuity

Workstation Ground Monitoring

Tracks:
● ESD mat resistance
● Ground connection integrity
● Workbench compliance

Environmental Monitoring

Measures:
● Temperature
● Relative Humidity
● Static charge risk levels

RFID Operator Identification

Provides:
● Operator authentication
● Shift tracking
● Traceability records

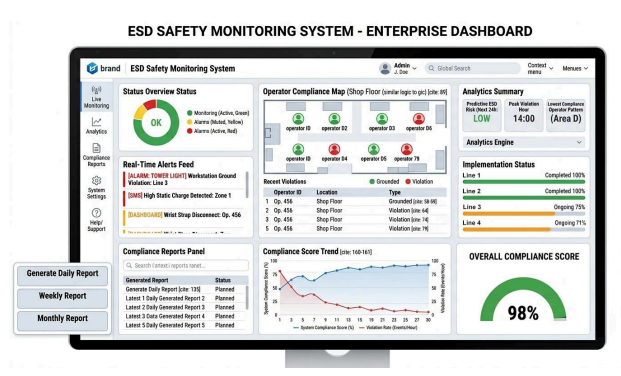

Central Monitoring Dashboard

Displays:
● Live compliance status
● Active violations
● Historical trends
● Shift-wise analytics

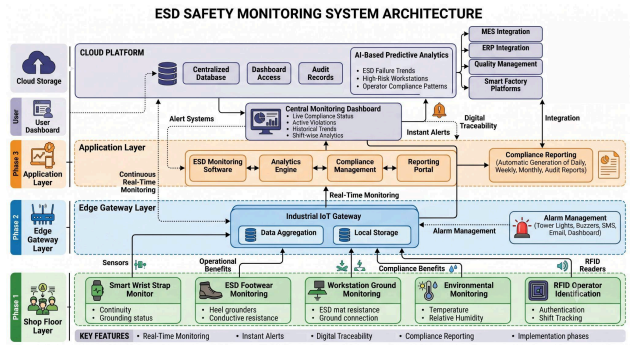

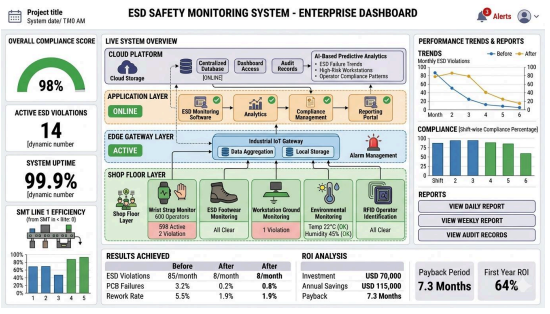

System Architecture

automative paint both

Key Features

Monitoring

Monitoring of:
● Operator grounding
● ESD workstation status
● Environmental conditions

Instant Alerts

Notifications via:
● Tower Lights
● Buzzers
● SMS
● Email
● Dashboard
● Alerts

Digital Traceability

Captures:
● Operator ID
● Workstation ID
● Timestamp
● Violation Type
● Corrective Action

Compliance Reporting

Automatic generation of:
● Daily Reports
● Weekly Reports
● Monthly Reports
● Audit Reports

Results Achieved

Quality Improvement

Parameter	Before	After
ESD Violations	85/month	8/month
PCB Failures	3.2%	0.8%
Rework Rate	5.5%	1.9%
Warranty Claims	2.1%	0.7%

Operational Improvement

KPI	Improvement
Audit Preparation Time	90% Reduction
Manual Inspections	75% Reduction
Compliance Tracking	100% Automated
Incident Response Time	80% Faster

Business Benefits

Manufacturing Benefits
● Improved product quality
● Reduced latent failures
● Higher production yield
● Better process control

Compliance Benefits
● Automated documentation
● Easier audits
● Regulatory compliance
● Customer confidence

Operational Benefits
● Real-time visibility
● Reduced manual effort
● Faster incident response
● Data-driven decisions

Conclusion

The ESD Safety Monitoring System transformed the EMS manufacturing facility from periodic manual ESD checks to a fully automated real-time compliance environment. The implementation significantly reduced ESD-related failures, improved product reliability, ensured regulatory compliance, and delivered a payback period of less than one year.

The project demonstrates how Industry 4.0 technologies such as IoT, cloud analytics, RFID, and real-time monitoring can enhance quality and operational excellence in modern electronics manufacturing.
